Unit 1. Well Casing

Chapter 5.

C. Discussion

Topics:

1. Profile planning: parameters defining the wellpath;

2. Applications of directional drilling and trajectory design of a deviated well;

3. Components parts of steerable drilling system and the mode of operation of such a system.

LEARNING OBJECTIVES:

Having worked through this chapter the student will be able to:

· describe the main types of completion

· describe the pieces of equipment used for different types of oil completion

· list and describe the functions of the wellhead

· describe the steps involved in installing the well casing, highlighting the reasons behind each step in the operation.

· identify the names of each of the component parts of casing and state its purpose.

· distinguish between two types of cementing

· describe the cementing process

· describe the procedures for running the tubing

· state the benefits of coiled and string tubing

· describe the role of the christmas tree equipment and its functions

Once a natural gas or oil well is drilled, and it has been verified that commercially viable quantities of petroleum reserves are present for extraction, the well must be 'completed' to allow for the flow of these fossil fuels out of the formation and up to the surface. This process includes strengthening the well hole with casing, evaluating the pressure and temperature of the formation, and then installing the proper equipment to ensure an efficient flow of petroleum out of the well.

Completing a well consists of a number of steps: installing the well casing, completing the well, installing the wellhead, and installing lifting equipment or treating the formation should that be required.

Installing well casing is an important part of the drilling and completion process. Well casing consists of a series of metal tubes installed in the freshly drilled hole. Casing serves to strengthen the sides of the well hole, ensure that no oil or natural gas seeps out of the well hole as it is brought to the surface, and to keep other fluids or gases from seeping into the formation through the well. A good deal of planning is necessary to ensure that the proper casing for each well is installed. Types of casing used depend on the subsurface characteristics of the well, including the diameter of the well (which is dependent on the size of the drill bit used) and the pressures and temperatures experienced throughout the well. In most wells, the diameter of the well hole decreases the deeper it is drilled, leading to a type of conical shape that must be taken into account when installing casing.

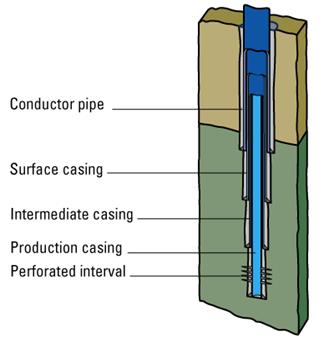

There are five different types of well casing. They include: conductor casing, surface casing, intermediate casing, liner string, production casing.

Conductor casing is installed first, usually prior to the arrival of the drilling rig. The hole for conductor casing is often drilled with a small auger drill, mounted on the back of a truck. Conductor casing, which is usually no more than 20 to 50 feet long, is installed to prevent the top of the well from caving in and to help in the process of circulating the drilling fluid up from the bottom of the well. Onshore, this casing is usually 16 to 20 inches in diameter. The conductor casing is cemented into place before drilling begins.

Surface casing is the next type of casing to be installed. It can be anywhere from a few hundred to 2,000 feet long, and is smaller in diameter than the conductor casing. When installed, the surface casing fits inside the top of the conductor casing. The primary purpose of surface casing is to protect fresh water deposits near the surface of the well from being contaminated by leaking hydrocarbons or salt water from deeper underground. It also serves as a conduit for drilling mud returning to the surface, and helps protect the drill hole from being damaged during drilling. Surface casing, like conductor casing, is also cemented into place. Regulations often dictate the thickness of the cement to be used, to ensure that there is little possibility of freshwater contamination.

Intermediate casing is usually the longest section of casing found in a well. The primary purpose of intermediate casing is to minimize the hazards that come along with subsurface formations that may affect the well. These include abnormal underground pressure zones, underground shales, and formations that might otherwise contaminated the well, such as underground salt-water deposits. In many instances, even though there may be no evidence of an unusual underground formation, intermediate casing is run as insurance against the possibility of such a formation affecting the well. These intermediate casing areas may also be cemented into place for added protection.

Liner strings are sometimes used instead of intermediate casing. Liner strings are commonly run from the bottom of another type of casing to the open well area. However, liner strings are usually just attached to the previous casing with 'hangers', instead of being cemented into place. This type of casing is thus less permanent than intermediate casing.

Production casing, alternatively called the 'oil string' or 'long string', is installed last and is the deepest section of casing in a well. This is the casing that provides a conduit from the surface of the well to the petroleum producing formation. The size of the production casing depends on a number of considerations, including the lifting equipment to be used, the number of completions required, and the possibility of deepening the well at a later time. For example, if it is expected that the well will be deepened at a later date, then the production casing must be wide enough to allow the passage of a drill bit later on. Well casing is a very important part of the completed well. In addition to strengthening the well hole, it also provides a conduit to allow hydrocarbons to be extracted without intermingling with other fluids and formations found underground. It is also instrumental in preventing blowouts, allowing the formation to be 'sealed' from the top should dangerous pressure levels be reached.

Once the casing has been set, and in most cases cemented into place, proper lifting equipment is installed to bring the hydrocarbons from the formation to the surface.

Once the casing is installed, tubing is inserted inside the casing, from the opening well at the top, to the formation at the bottom. The hydrocarbons that are extracted run up this tubing to the surface. This tubing may also be attached to pumping systems for more efficient extraction, should that be necessary.
